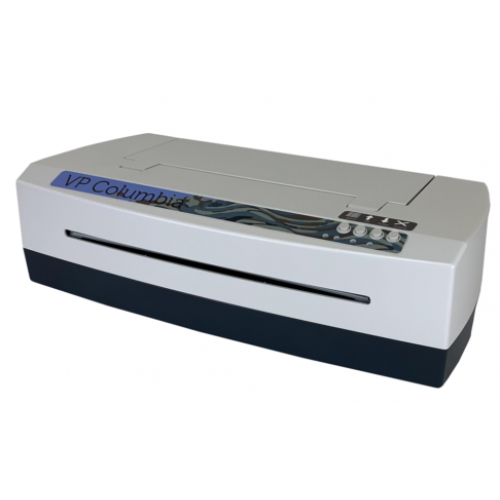

The ViewPlus Columbia Embosser: A Solid Choice for the Home User

ViewPlus is known for its excellent tactile graphics embossers. The Tiger line has been used for years in many different areas, including being the required embosser for on-demand graphics in states with Smarter Balanced standardized testing. The Columbia is the latest embosser from ViewPlus. It can emboss one-hundred characters per second, emboss double-sided Braille, and is fully tactile graphics capable. The Columbia is also reasonably priced.

Embosser Specification:

Print speed: Up to 120 CPS

Printing Mode: Double-sided

Tactile Resolution: 100 DPI

Tactile Graphic Dot Heights: 7 steps for color representation

Braille Dot Heights: Adjustable in 3 heights

Paper

Paper Width: 7 - 11.5 inches (176 - 292 mm)

Paper: Continuous

Paper Weight: 33 - 120 lb (90 - 200 gsm)

Connection/Compatibility

Connection: USB (1.1, 2.0), Ethernet

Compatibility: Windows 7, 8/8.1, 10

Dimensions/Weight

Height: 6.2 in (158 mm)

Width: 21.9 in (557 mm)

Depth: 10.8 in (275 mm)

Weight: 19.8 lbs (9 kg)

Temperature/Humidity

Recommended Temperature: 59 - 95 °F (15 - 35 °C)

Storage Temperature: -4 - 158 °F (-40 - 70 °C)

Humidity: 20 - 80% RH (non-condensing)

Power Supply

85 - 264 VAC

50/60 Hz (+/- 3%)

Standby: 20 W

Heavy Embossing: 200 W

Noise Level: 75 db(A)
