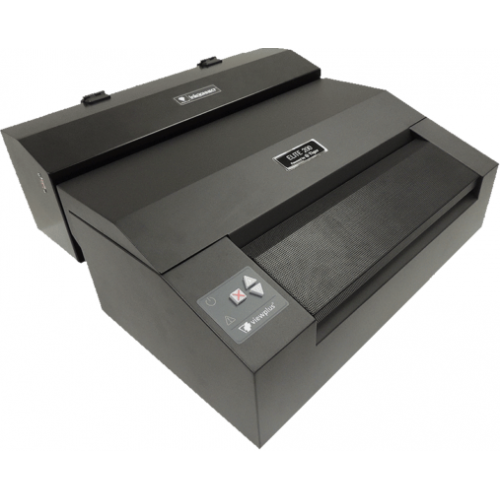

The VP Elite was built to withstand the toughest embossing requirements while embossing at 200 characters per second. With the highest quality components available you can expect your braille requirements to get done reliably and quickly.

Embossing

Print speed: Up to 200 CPS

Printing Mode: Double-sided

Tactile Resolution: 20 DPI

Tactile Graphic Dot Heights: 7 steps for color representation

Braille Dot Heights: Adjustable in 3 heights

Paper

Paper Width: 4 – 12 inches (101 – 305 mm)

Paper: Continuous tractor feed

Paper Weight: 30 – 140 lb (50 – 230 gsm)

Connection/Compatibility

Connection: USB (1.1, 2.0), Ethernet

Compatibility: Windows 7, 8/8.1, 10

Dimensions/Weight

Height: 8.8 in (224 mm)

Width: 22.3 in (569 mm)

Depth: 13.8 in (351 mm)

Weight: 60 lbs (27,2 kg)

Temperature/Humidity

Recommended Temperature: 55 – 95 °F (13 – 35 °C)

Storage Temperature: -4 – 158 °F (-20 – 70 °C)

Humidity: 20 – 80% RH (non-condensing)

Power Supply

85 – 264 VAC

50/60 Hz (+/- 3%)

Standby: 22 W

Heavy Embossing: 235 W
